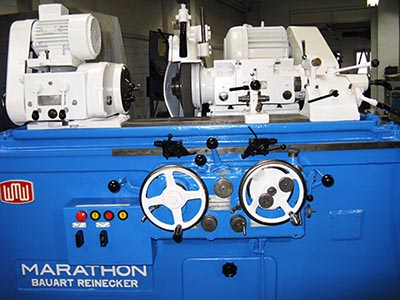

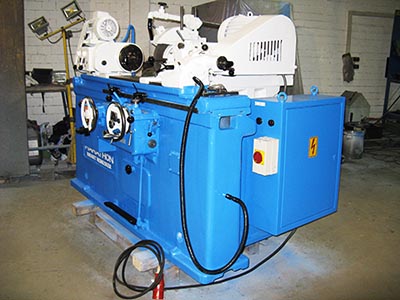

Hydr. Cylindrical Grinding Machine
WMW MARATHON-WERKE SA 240

manufacturer: WMW MARATHON-WERKE
build type: Reinecker
type: SA 240
mach.-nr.: 66973
year of construction: 1988* / 2018 tüp.
comm.-nr.: 3990700/009
stock-nr.: 1867

Special Price: 8.400,- € | now 6.720,- € +++ SOLD +++



The machine can be used for:

  • outer grinding
  • surface grinding
  • cone grinding
  • edge grinding
  • chamfering
  • plunge grinding



Technical Data

(According to manufacturer)

height of tip: 120 mm
swing – Ø: 240 mm
width of tip: 630 mm

grinding wheel:

diameter: 400 mm
bore diameter: 127 mm
max. width of full grinding wheel during punch-grinding: 50 mm
greates total width of grinding wheel set: 80 mm
greatest sum of single widths: 50 mm
grinding wheel speed: 1.650 rpm = 35 m / s

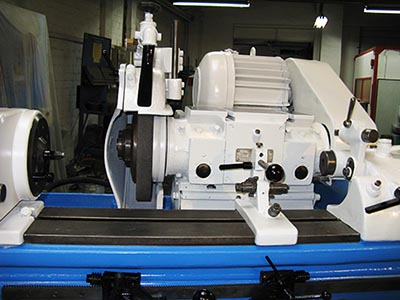

grinding head:

max. grinding head hub: 295 mm
max hub using hand wheel: 200 mm
additional hub: 95 mm
autom. interval feed, infinitely adjustable: 0,0025 – 0,04 mm
hand wheel feed: 0 – 0,8 mm
automatic feed: 0 – 0,8 mm
feed via one revolution of the hand wheel: 1,0 mm
feed via one hand wheel unit: 0,01 mm
rapid traverse of grinding head: 40 mm
max. diameter adjustment: 2,0 mm
diameter adjustment via tipping switch: 0,005 mm
diameter adjustment via micro-stop: 0,001 mm

headstock spindle:

4 workpiece speeds, adjustable: 50 – 400 rpm
rotatability of headstock spindle against the grinding wheel: 90°
spindle cone or inner cone of headstock spindle: MK 4

tailstock:

inner cone of quill: MK 3
quill way: 60 mm
table:

max. table tilt: 10° each
max. cone angle: 20°
table speed, adjustable: 30 – 3.000 mm / min.
min. table travel using hydraulic movement approx.: 3 mm
table oscillation during plunge grinding: 3 – 5 mm
table adjustment via hand, fine: hand wheel unit = 0,03 / 1 hand wheel revolution 7,5 mm
table adjustment via hand, rough: hand wheel unit = 0,12 / 1 hand wheel revolution 29,5 mm

drive power: approx. 8,5 kW
weight: approx. 2.400 kg
standing area: W 1,90 x D 1,30 x H 1,40 m
color: blue / grey-white



features

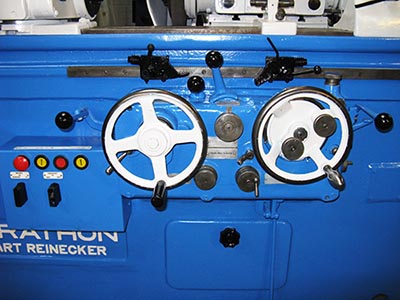

  • manual or automatic operation
  • upper table for cone grinding with fine adjustment and dial gauge
  • automatic adjustment works as punch grinding adjustment, without adjustment,
    table-dependent adjustment: # right # left and right # left only
  • rapid traverse infinitely adjustable
  • creep traverse infinitely adjustable
  • ejecting infinitely adjustable, can be disabled
  • tailstock can be activated mechanically by hand lever or hydraulically via foot switch
  • hydr. table oscillation
  • 3 – B. – grinding padding Ø 125 mm, with inner and outer clamps (unused)
  • fixed prick punch MK3
  • universal grinding stone puller, adjustable and tiltable
  • second grinding wheel flange with grinding wheel
  • wet-grinding equipment with magnetic filter



  • If the year of construction has a “tüp.”-date, that means the machine has been electrically and technically inspected by us on that date.
  • If the year of construction has a “tüb.”-date, that means the machine has been partially overhauled on that date according to the prior owner.
  • If the year of construction is marked “*”, it is the information the prior owner relayed to us or our own estimation.
