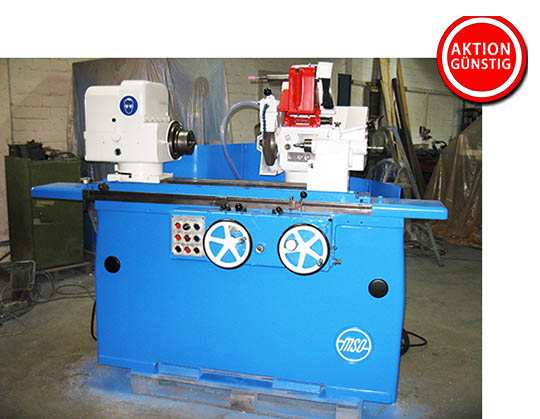

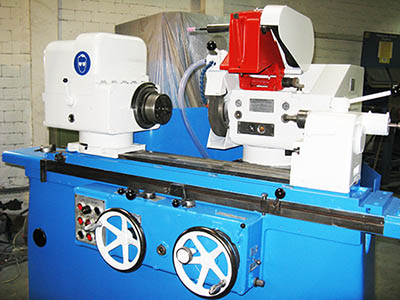

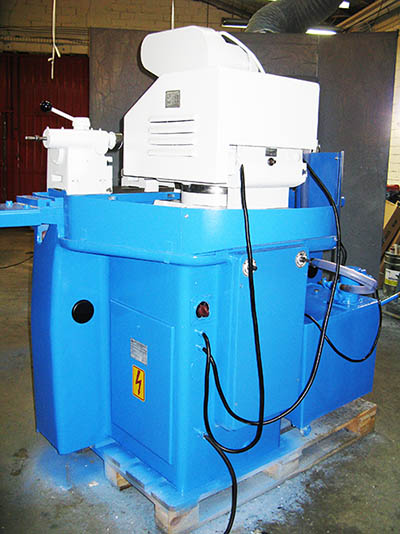

Universal Cylindrical Grinding Machine MSO FM 165/500
with internal grinding attachment

manufacturer: MSO
type:
FM 165 / 500
mach.-nr.:
M 26214
year of construction:
??? / 11.2018 tüp.
comm.-Nr.:
3990400/009
stock-nr.:
1908

Special Price: 8.850,- € | now 7.080,- € +++ SOLD +++

The machine is suitable for:

  • external grinding
  • internal grinding
  • surface grinding
  • taper grinding
  • chamfering
  • angled flat grinding



Technical Data

(According to manufacturer)

centre height: 180 mm
swing-Ø: 360 mm
grinding length: 500 mm
between centres: 550 mm

grinding wheel

diameter: 300 mm
bore-Ø: 127 mm
largest width of grinding wheel for plunge grinding: 40 mm
largest total width of a grinding wheel set: 80 mm
largest sum of single widths: 40 mm
grinding wheel speed: 1.650 / 2.150 rpm = 30 m/s

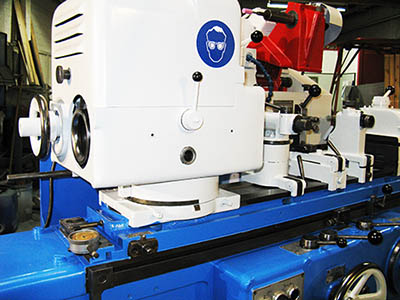

grinding head

largest grinding head hub: 209 mm
largest hub by hand wheel:
67 mm
additional hub:
142 mm
autom. interval feed:
0,005 – 0,020 mm
feed by one revolution of hand wheel:
rough 25 mm / fine 2,5 mm
feed by one hand wheel graduation mark:
0,0025 mm
setting by tip-switch regarding diameter: 0,00125 / 0,0025 mm

internal grinding attachment

largest distance from front edge spindle headstock to grinding spidnle carrier: 750 mm
bore for carrying the spindle: 60 mm
largest grindable bore: 125 mm / maybe larger

headstock spindle

6 work-piece speeds, adjustable: 40 – 305 rpm
rotatability of headstock spindle against the grinding wheel:
90°
spindle cone or inner taper of headstock spindle:
MK 4

tailstock

inner cone of quill: MK 3
quill travel: 20 mm

table

largest table incline: 10°
largest cone angle: 20°
table speed: 0,2 – 1,1 m/min
rough travel by hand wheel: 1 revolution 25 mm, 1 graduation mark 0,25 mm
fine travel by hand wheel: 1 revolution 2,5 mm, 1 graduation mark 0,025 mm

total connected load: ca. 4 kW
weight:
ca. 1.800 kg
standing area: W 2,10 x D 1,20 x H 1,60 m
color: blue / grey-white / red



features

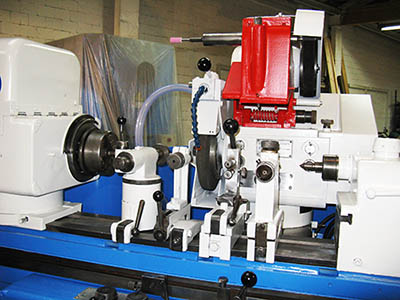

  • rotatable internal grinding attachment

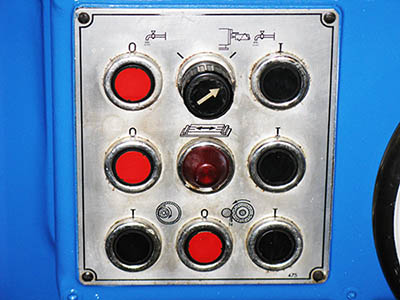

  • manual or automatic operation
  • self-feeding up to 0-limit
  • grinding wheel fine adjustment 0,00125 / 0,0025
  • automatic feed works as piercing feed, without feed, table-dependant feed
    only RIGHT / LEFT and RIGHT / only LEFT
  • upper table for tamper grinding with fine feed and measuring clock
  • bedway is lubricated by re-oil
  • tailstock can be activated by mechanical lever
  • attachment with measuring clock for table pivoting up to 10°
  • headstock spindle pivotable up to 360°
  • grinding head pivotable up to 360°, in 2 layers
  • grinding head two speeds

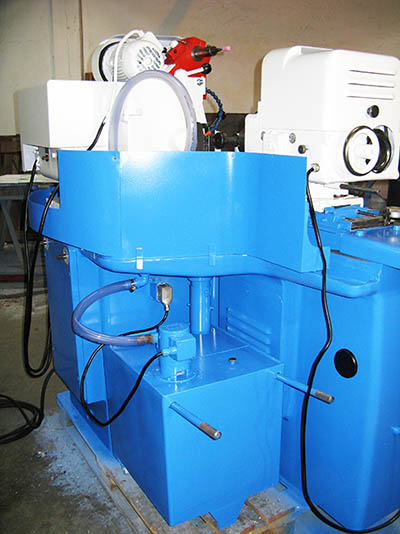

  • free-standing liquid cooling system, mobile
  • splash guards

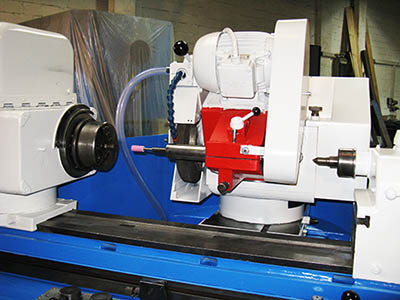

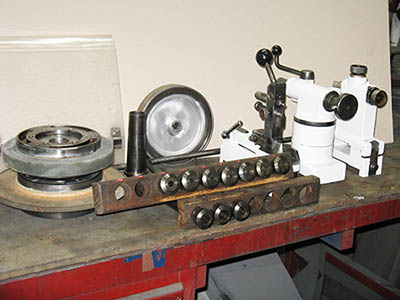

  • 3 pieces grinding wheel flanges with wheels

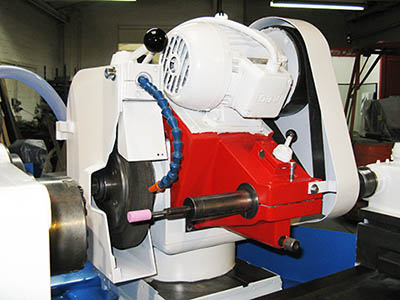

  • internal grinding spindle with cone attachment and extraction threading
  • internal grinding spindle with fastening clamp attachment and fastening clamp Ø 6 mm
  • internal cooling through work spindle on work piece during internal grinding
  • 2. driving pulley to adjust the internal grinding spindle rmp setting
  • adjustable straight and radial matching device with quick-fastening lever

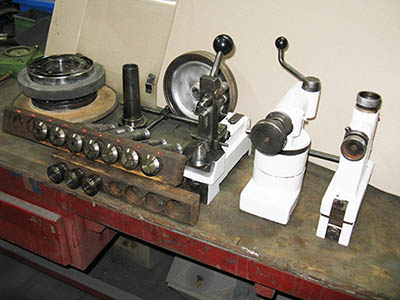

  • adjustable dressing device for grinding wheel, at tailstock
  • adjustable side and diagonal dressing device with scale, for grinding wheel, with quick-release lever
  • open lunette, adjustable
  • Three-Chuck-fastening buffer forkhardt Ø 125 mm, with spindle receiver flange
  • collet attachment for direct spindle reception
  • fastening clamp device with spindle recevier
  • 10 collet chucks for collet from Ø 3 mm – 22 mm
  • 5 vibration-dampening standing bars
  • of internal grinding spindles in various sizes
  • operating manual

The seller informed us this has been used in a teaching environment.
