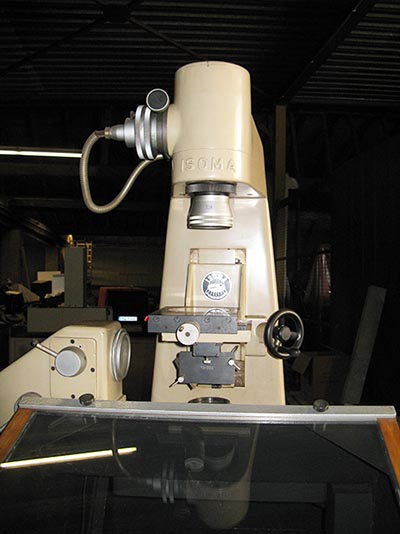

Profile Projector
ISOMA M 108 A / Suisse

manufacturer: ISOMA
type: M 108 A
mach.-Nr.: 866477
comm.-Nr.: 0202/050/130/0382
stock-Nr.: 1835

Regular Price: 4.680,- €  > Reduced Price 2.340,- € BN

Technical Data

(According to manufacturer)

screen width: 550 mm
screen height: 450 mm
object table length: 170 mm
object table width: 150 mm
travel legth: 40 mm
travel width: 15 mm
glas table Ø: 85 mm

voltage: 220 V / 50 Hz
weight: 280 kg
standing area: W 1.000 x D 800 x H 1.800

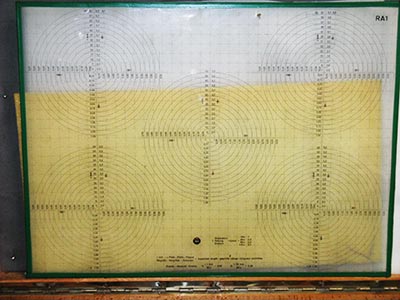

  • Screen Size W 550 x H 450 mm
  • object glas table insert
  • vertical sled
  • table micrometer spindle for legth and width, 0,001/0,01 mm
  • through-light (diascopy)
  • resistor for through-light, adjustable 0-10
  • top-light (episocpy)
  • light angle guide for top-light
  • lighting condensor
  • condensor adjustment
  • operation with filter
  • accesoires + spare parts 2 pieces wood case ISOMA (see images)
  • lenses + condensators in different styles, spare lamps and other spare parts
  • 10 overall pieces, lenses + condensators in diferrent sizes: 1:10/1:20/1:50/1:100 for different use cases
  • operating manual + electr. plans, M 109 / M 108


  • If the year of construction is marked “*”, it is the information the prior owner relayed to us or our own estimation.
